Interaction · 2025
Whispering Fir
Multisensory embedded pavilion: ESP32 master-slave, sound-reactive + proximity-based LED interaction
Case Study

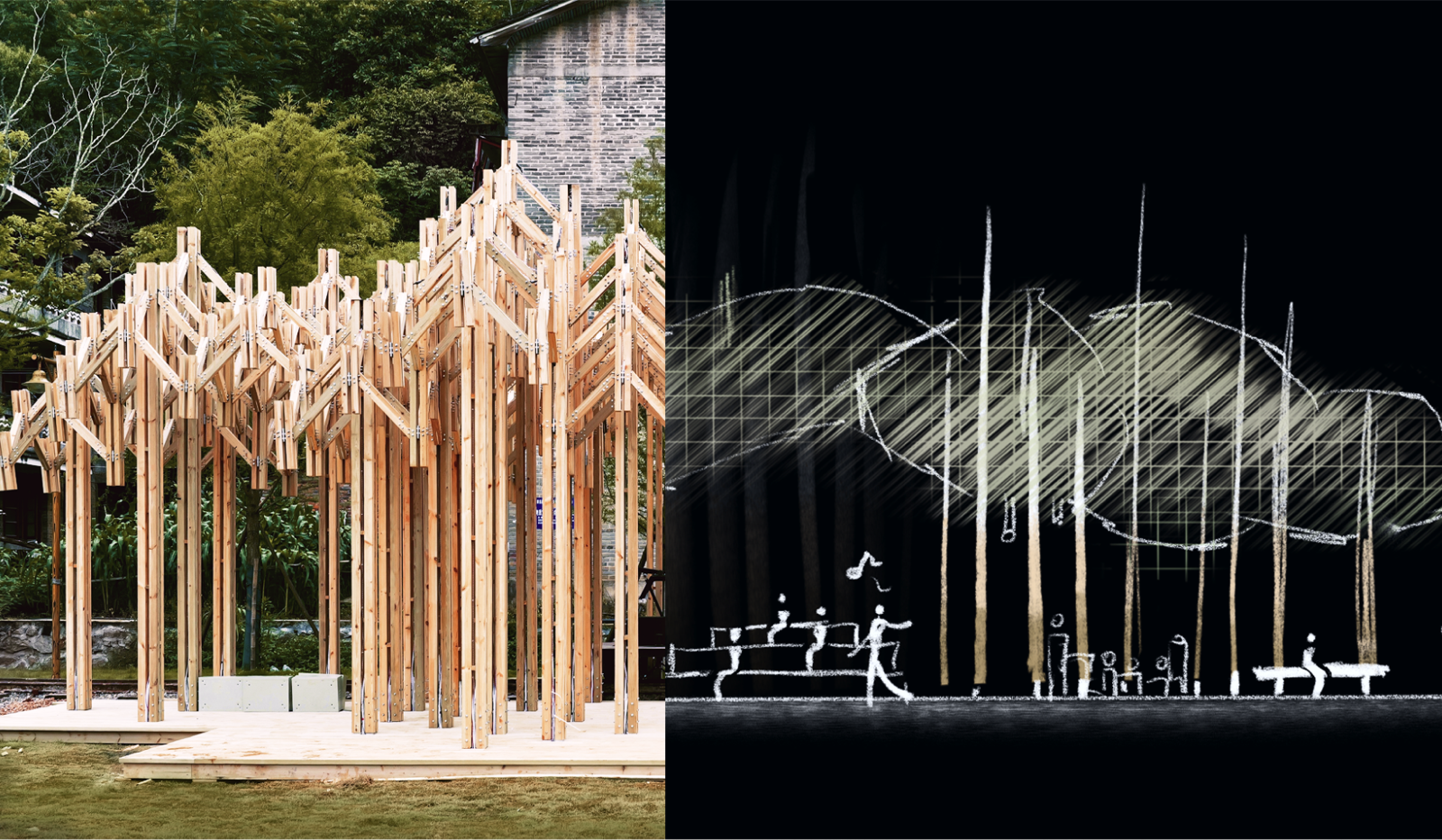

A Multisensory Embedded System for Interactive Spatial Experience
Keywords: Human-Computer Interaction · Multimodal Interaction · Embedded System · Sound Interaction · Pavilion
interaction part: Ruyi Yang, Bingxin SHI, Yu MI, Xiongwei LUO
instructor: Professor Chao YAN & Feng DENG, Tongji University
source code for interaction part: https://github.com/Emmmmmmaa/FirForestLight_ESP
Spectrum Mode Sample
Pure Music
Instrumental
Vocal
Vocal
Interaction
Designed a multimodal interactive system combining voice-controlled and proximity-based interaction, with ESP32-based master-slave communication and embedded sensors.

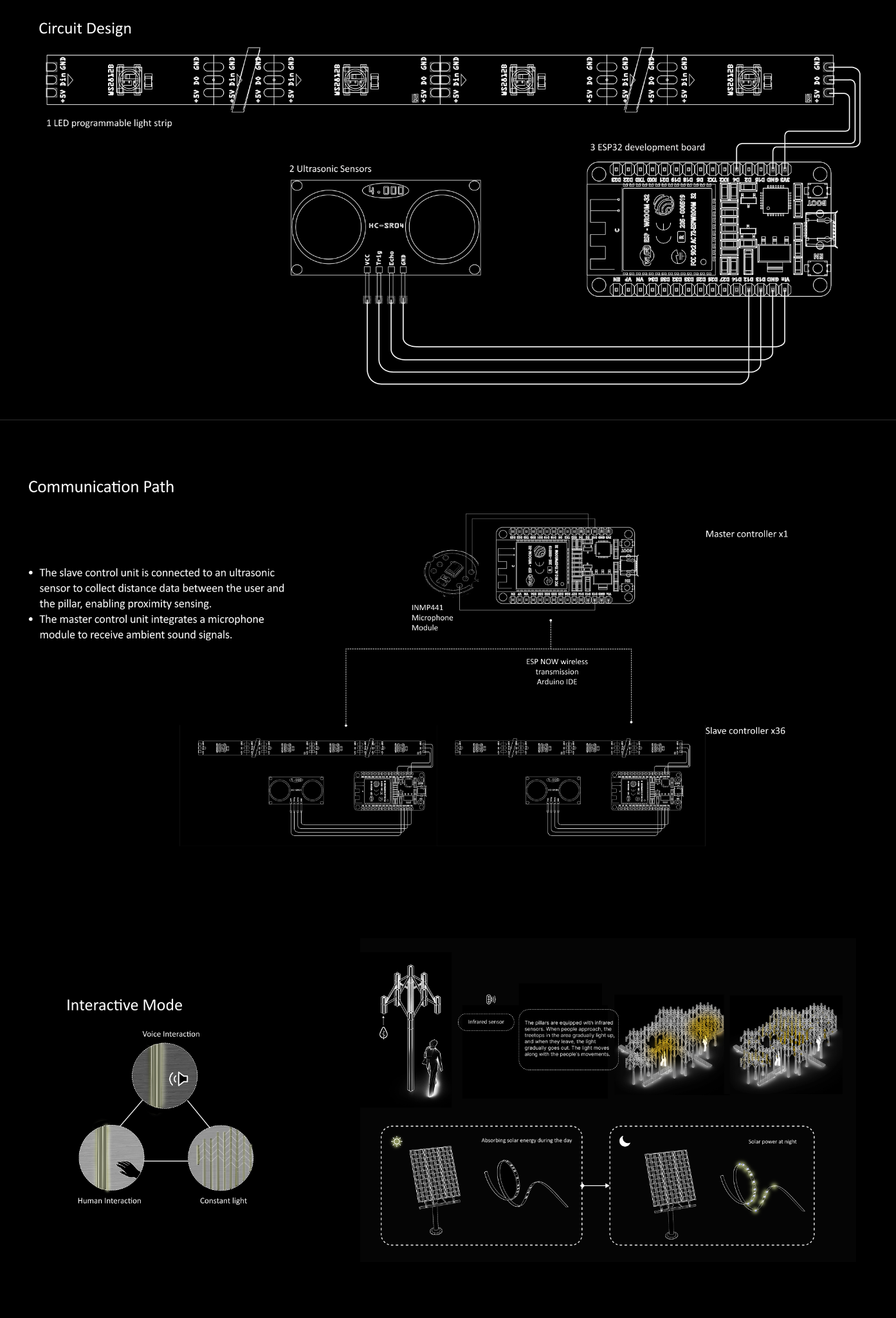

The master unit integrates a microphone for real-time sound signal analysis, while each slave unit controls 35 LEDs and collects distance data via ultrasonic sensors.

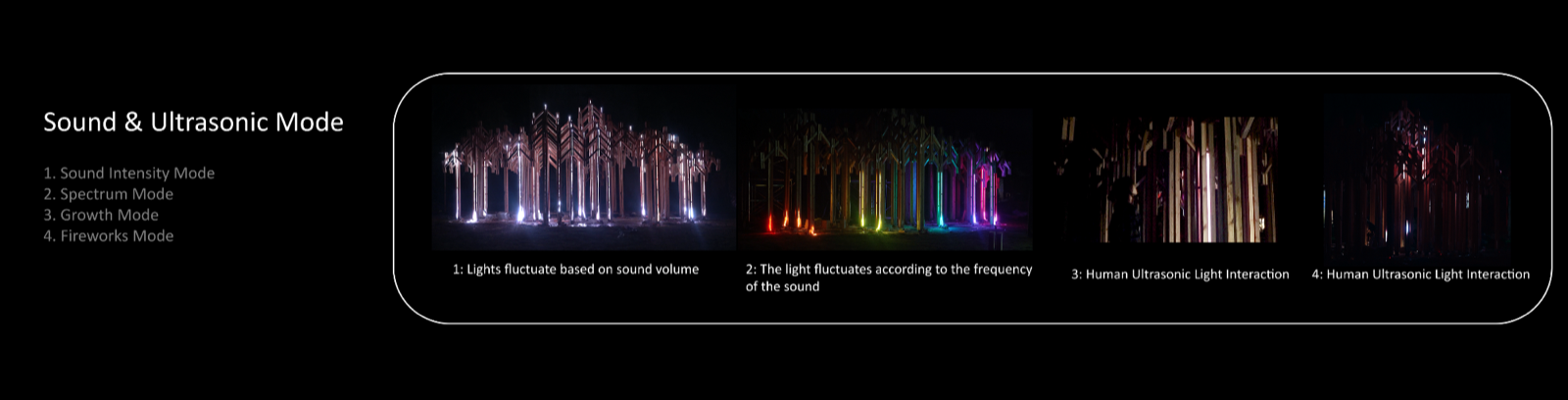

Successfully implemented three interaction modes: constant lighting (color/ambient/breathing), sound-reactive lighting (volume & spectrum), and human-triggered effects (growth simulation & particle fireworks).

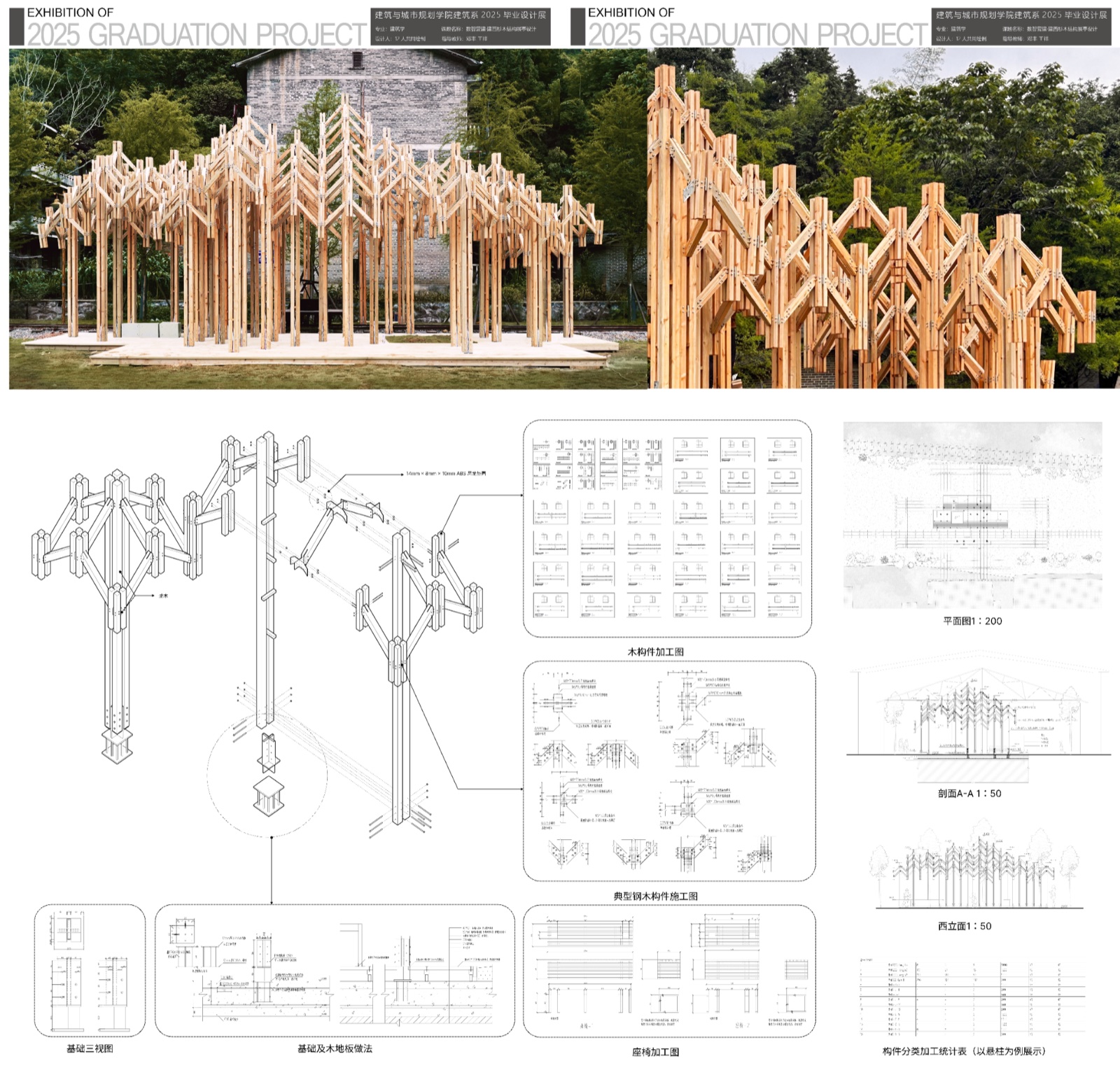

Construction

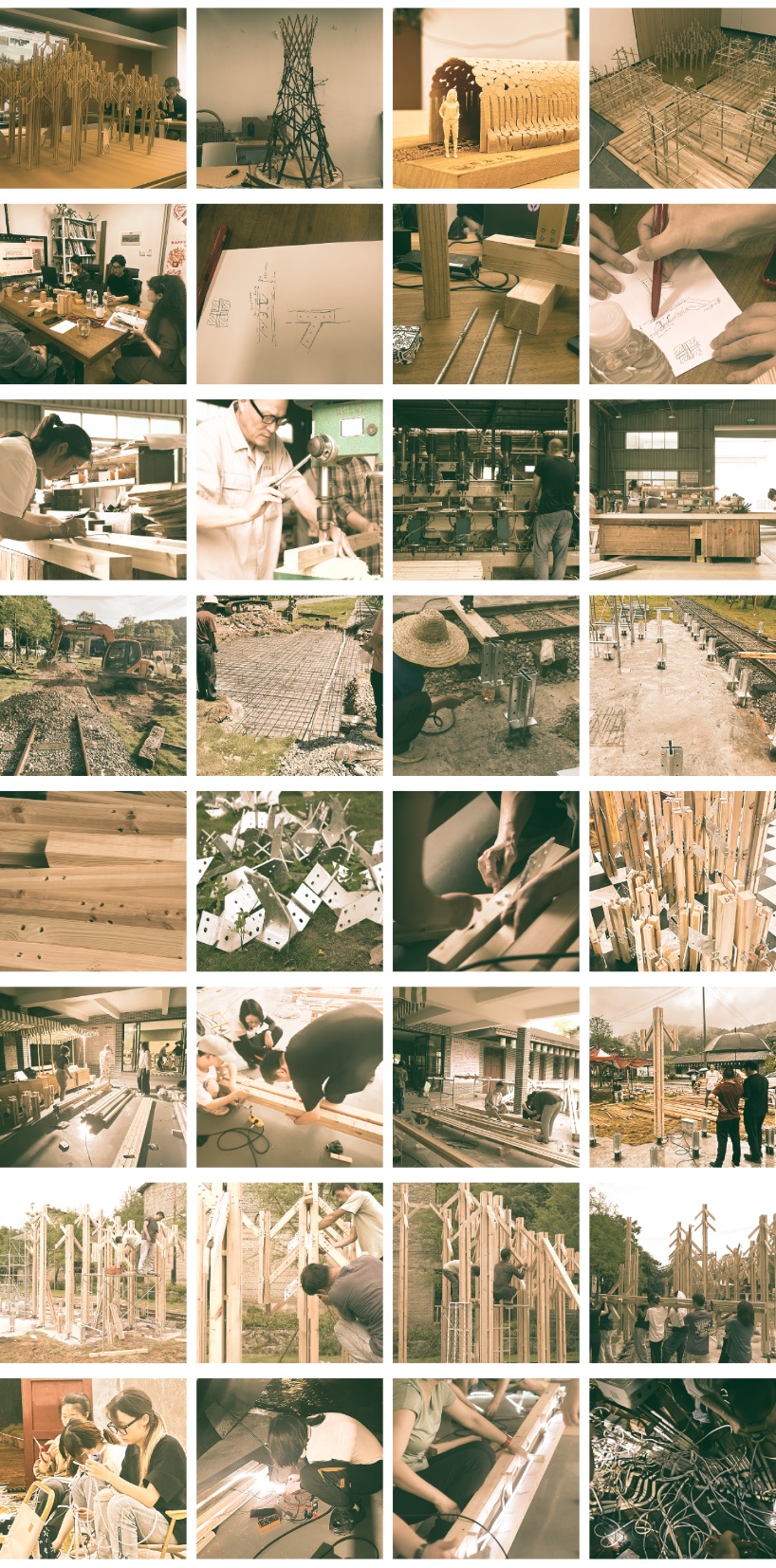

construction process
